We have added an online store but not all items are listed there yet but we are working on listing every item shown here and more. Our store is located at http://store.aeroliner-boats.com. The store is still waiting for our first customer so if it does not work for you email us what your problem is. Paypal is available for payment.
Reproduction Parts For Sale
We are Wiseco Piston dealers and can supply custom pistons for your racing engine.
Our latest development project is to adapt the Electromotive Ignition Systems point less ignition for the Mercury four cylinder Mod engines. This will eliminate the magneto and the need for those hard to find points. The system will be capable of high RPM, higher spark voltage and greater reliability. We currently have the electronic parts and are designing and constructing the installation kit for the system. We have tested the system on a couple of our 40 &44 CI modified racing engines. The engine is very stable where before with a magneto engine RPM would oscillate a few hundred RPM at the higher range of revolutions we run these engines at. Currently we are revising the installation hardware to provide additional clearance and have found out that we can eliminate a relay an a fuse. A few racers have tried this system in the past and recommended we try it. Our feeling is to offer a complete package which has been tested in actual racing conditions. Offering technical support and installation hardware hopefully will keep these engines running in the front of pack. We are also going to offer the parts needed for the system to those that wish to save some money an construct their own mounting hardware. Well the first racing results are in. On May 17, 2014 the D Mod engine with the Aeroliner Electromotive Ignition won the first two heats of NBRA D Mod racing in 2014. This was a short course so the brain was tuned for acceleration which it delivered with only a slight reduction in top speed. We have now completed the testing and find satisfactory results and completed 12 engines running on this system. The prices for the system vary depending upon component selection and the amount of installation you ask to be done. Give Alan a call at 337-304-0379.
We have reproduced some of the parts needed to restore Quicksilver racing lower units. We hope to be able to furnish enough parts to be able to totally restore your unit. Following is a listing of the parts we have made. These parts are built just like factory original parts. The aluminium parts are made from 6061T6 grade stock.
These parts are for the Mercury Mark 20H, Mark 30H and Mark 55H. The A/B parts will also work on the Mercury KG4H, KG7H, KG4Q and the KG7Q.
We have had a number of Parker style mid sections made and are offering the ones we do not need for our racing program for sale, see below for pictures and description.
To order parts email, call or mail a request to the information listed on our Contact page. Most shipping will cost around $7.00 for the first item and one dollar for each additional item ordered.
Due to increased cost having some of our parts machined we have been forced to raise our prices for the first time in 8 years.
All purchases delivered or picked up in Florida are subject to a sales tax of 6.5%.

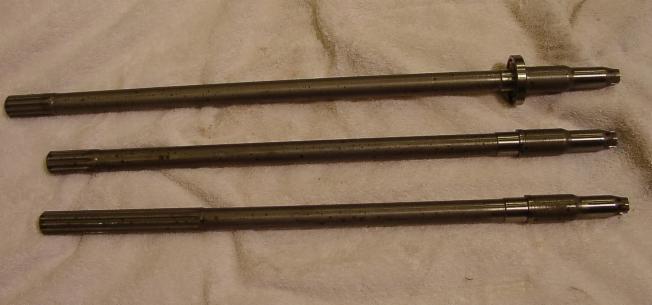

D Driveshafts for the Mercury Mark 55H or Mod engines.
There are two versions available, the standard Mark 55H, a second in the standard length with five (5) inches of crankshaft splines. The standard length with the longer splines can be cut off up to four (4) inches so a coupler does not have to be used for a shorter shaft length we can cut it to 17 7/16" for use in Mark 40H or 15" for a 44XS. All of the shafts are made like the originals including heat treating and hardening in the bearing area. The longer length shaft is no longer available.
Prices: Standard length (Mark 55H) $275.00
Standard with long splines (Mark 40H or cut) $275.00
Shipping to USA addresses including insurance is $25.00

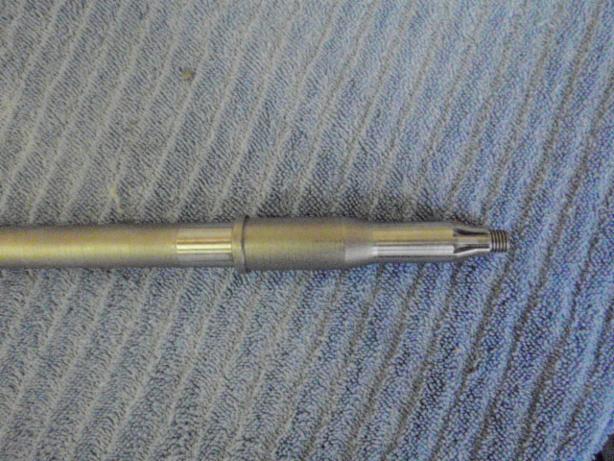

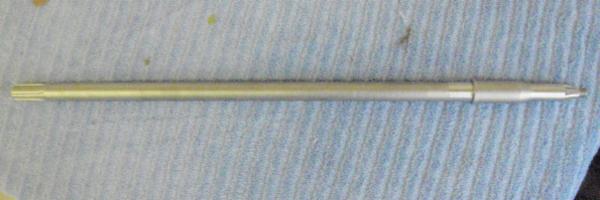

Mark 30H and Mark 20H Driveshafts
Made from Mercury plans and checked against an NOS C shaft. These are the standard Mark 30H shaft and the Mark 20H shaft that uses the Mark 30H bottom end and the 16 mm 6202/16 bearing. This shaft has been called the Metric shaft due to the use of the larger bearing. Also available is a cut down stub version of the C shaft for use on a Mod unit. You just have to make a coupling on the top and you are set to go.
Price Mark 30H $275.00
Mark 20H (Sold Out) $275.00
Mark 20H Old Style NOS $300.00
We have a number of NOS 25SS shafts available, the price of these is $300.00 plus shipping and handling. These can be made to 20H length. Also available are two early style 25XS shafts, 21.5 long as used on the 25SS conversion to the 25XS, price are each $300.00 plus shipping.
Shipping to USA addresses including insurance is for all shafts $25.00 one shaft.
Mercury Recoil Rope, KG4, KG7 and Mark 20
Recoil rope, Original style cloth wrapped with galvanized steel core wire. Dyed wine color like original.
5.5' with metal anchor pin $15.00

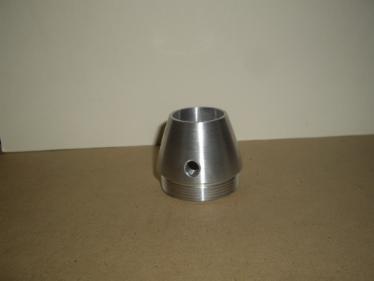

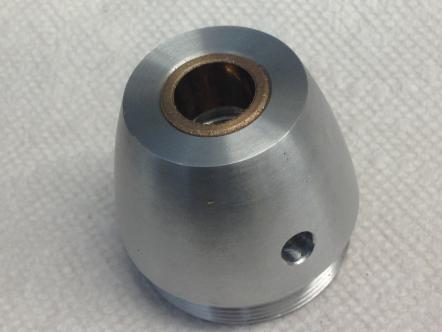

Bushed Cone Nut used on the Q Length Towers
This is an exact reporduction of the cone nut used on the KG4Q and KG7Q racing lower unit. An Oillite bushing has been installed that will fit the OEM propshaft.
21875A1 A/B Bushed cone nut $45.00
A-20902 A/B/C Propshaft Cone Nut $45.00
A-21590 D Propshaft Cone Nut $45.00

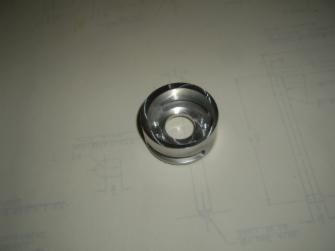

46-20905 A/B/C Water Pump Cover (Bearing Carrier) $45.00
We have drilled the hole for the location pin on these carriers.
46-21587 D Water Pump Cover (Bearing Carrier) $45.00
(shown with seals and bearings installed for an additional charge)
Seals & Bearings for either Carrier installed additional $80.00
Made from 6061 T6 alloy. We can install the seal if you wish for an additional $10.00

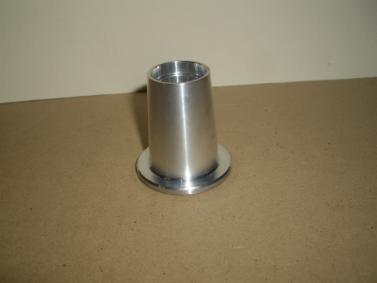

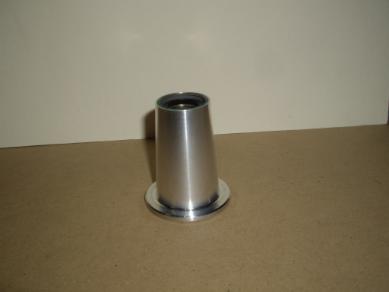

46-20943A1 A/B/C Water Pump Cartridge $60.00
Made from 6061 T6 alloy, we even drilled the hole for the location pin used on the D cartridges. We can install the seal if you wish for an additional $10.00.

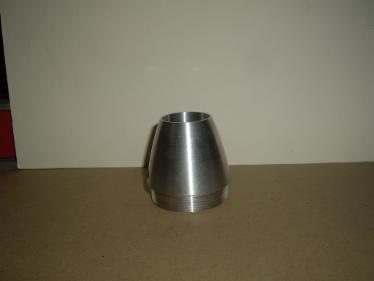

46-21892 D Water Pump Cartridge $75.00
Seal installed in cartridge for an additional $ 10.00

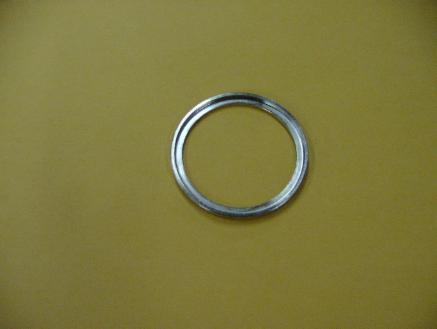

Water Pump "L" Ring used behind the cartridge
12-21890 D Water Pump L Ring New $ 12.00, Used $5.00

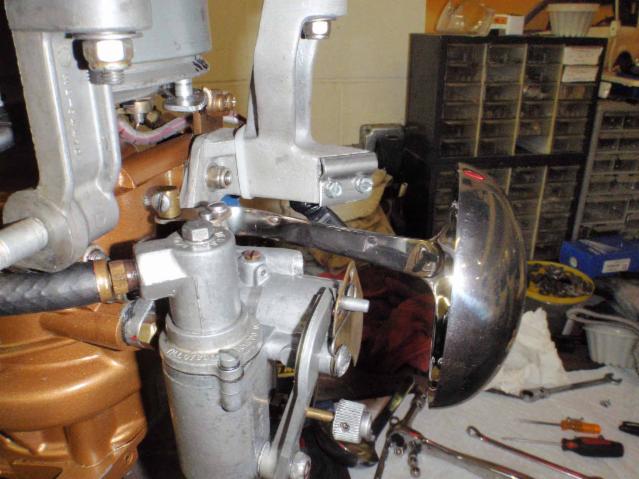

Mark 20H Conversion Spray Shield
We have been making these spray shields for the Mercury Mark 20H Conversion since the early 1960's . The one pictured is on an engine we restored for a well known racer. This version used a riveted design but the current model is a made from one piece of stainless steel. The shield keeps spray out of the carb but still allows you to adjust the needle valves and use the choke.
Price $16.00 plus shipping
Price Riveted Old Style one left $10.00 plus shipping

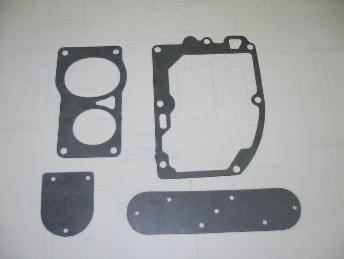

Mark 20H Conversion Specific Gasket Set
27-29508, 27-29509, 27-29502, 27-29504 $20.00

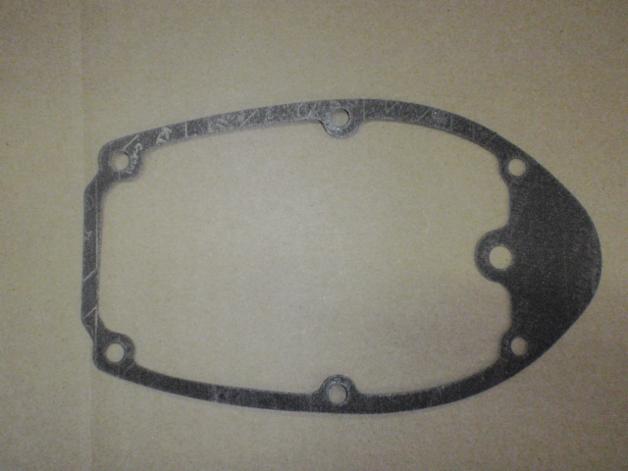

Gaskets Two Cylinder Mercury Engines

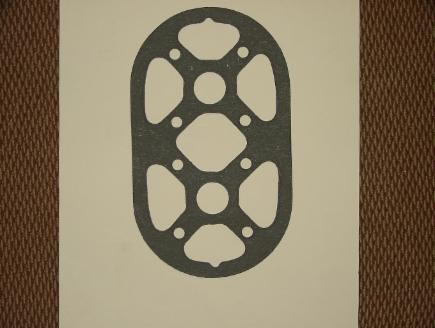

27-20531 Mark 20H, KG7H & KG4H Cyl. Block Cover Gasket $4.50
Non conversion 20H
27-20536 Mark 20H, KG7H & KG4H Block to Manifold Gasket $ 6.00

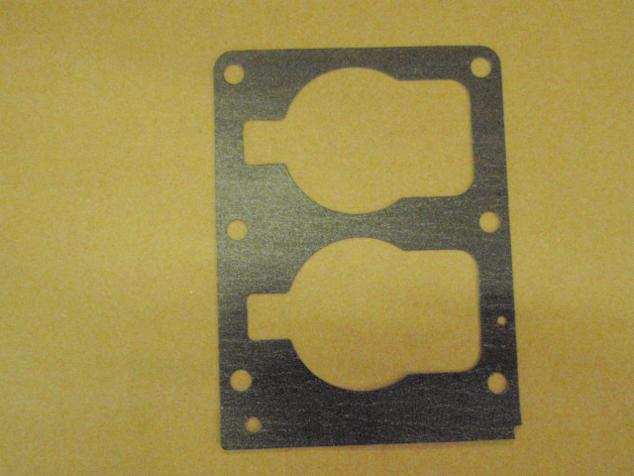

Block to Crankcase
27-21173 KG4-7,KE7,KF7,KH7,MK 15, 20 Gasket $ 4.75

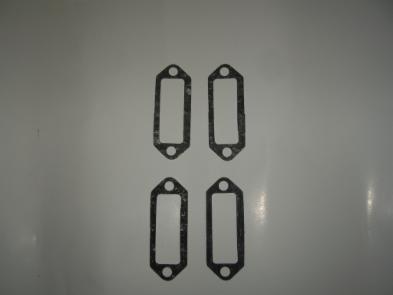

27-20030 KG4H, KG7H, MK 20H, MK 30H, MK 55H
Single $1.75 Two $3.00 Four $5.00

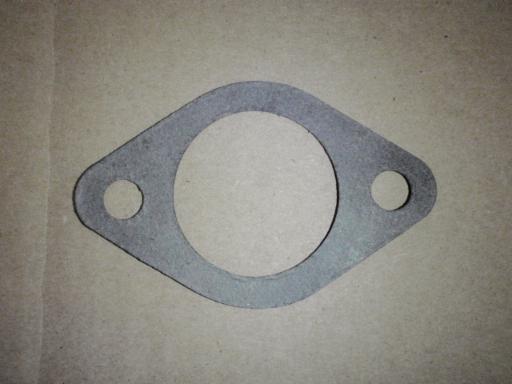

27-20478 MK 20H and MK 55H
Carb to Crankcase for both Carter N or KA7A $ 3.75

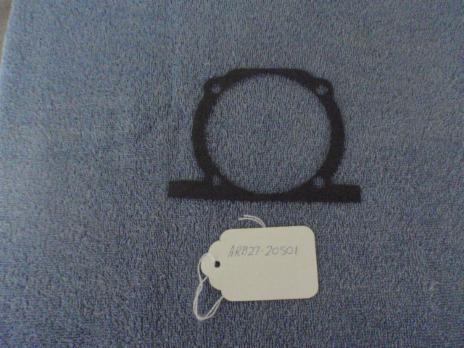

27-20501 MK 20H and MK 25
Lower Bearing End Cap (Thin) $4.00

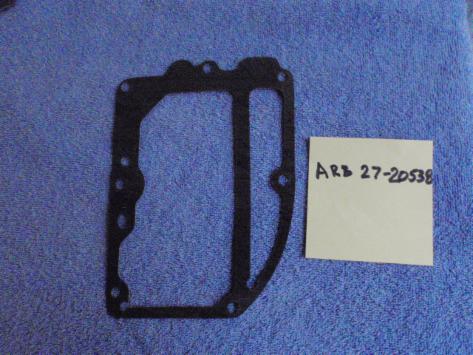

27-20538 K Series engines, MK 20H,(Non Conv.) MK 15, MK 25
Exhaust Cover to Baffle $ 7.00
27-20642 MK 20H and MK 25
Powerhead to Lower Unit Mid Section $ 5.00
27-21173 MK 20H and MK 25
Crankcase to Engine Block $ 4.75

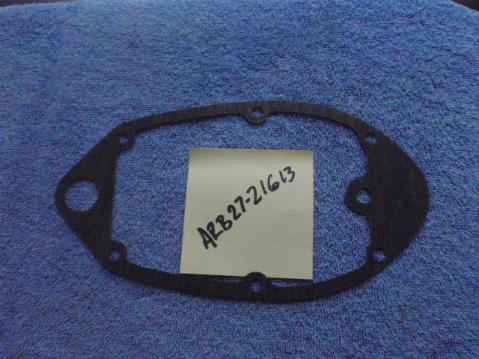

27-21613 1939 to 1953 K Series engines
Powerhead to Lower Unit Mid Section $ 7.00

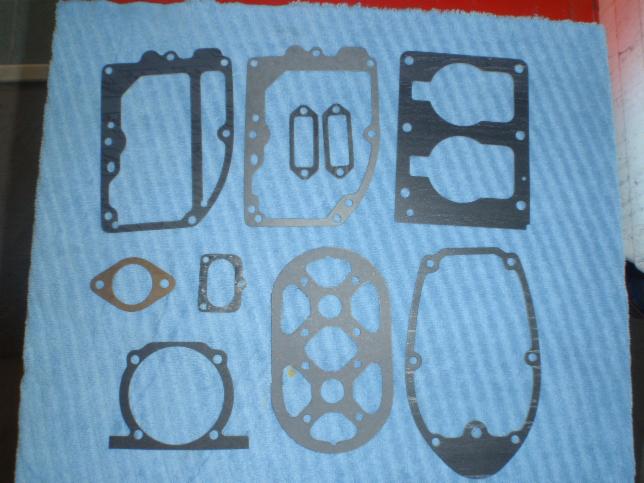

Mark 20H Original Gasket Set:
27-20478, 27-20501, 27-21713, 27-20030 (2), 27-20538, 27-0536, 27-20531, 27-20642, 27-20039
Can be used for a KG 4 or KG 7 by eliminating 27-20478 & 27-20039 Price $33.00

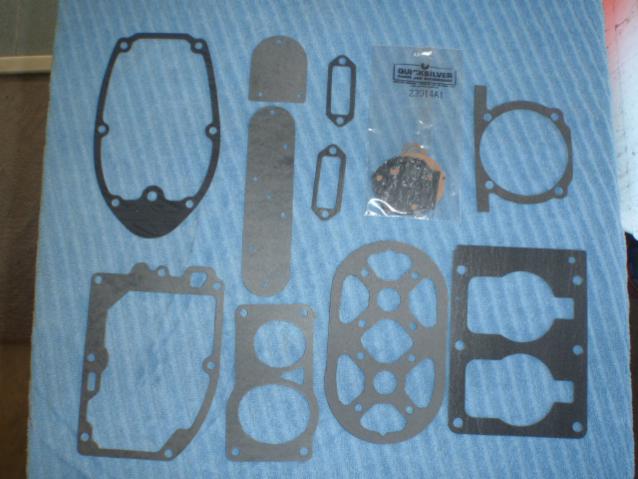

Mark 20H Conversion Gasket Set:
Includes 27-20478, 27-20501, 27-21713, 27-20030 (2), 27-20642, 27-29502, 27-29504, 27-29508, 27-29509 and 23014A1 Diaphram kit, Copper gaskets 27-29582 see below.

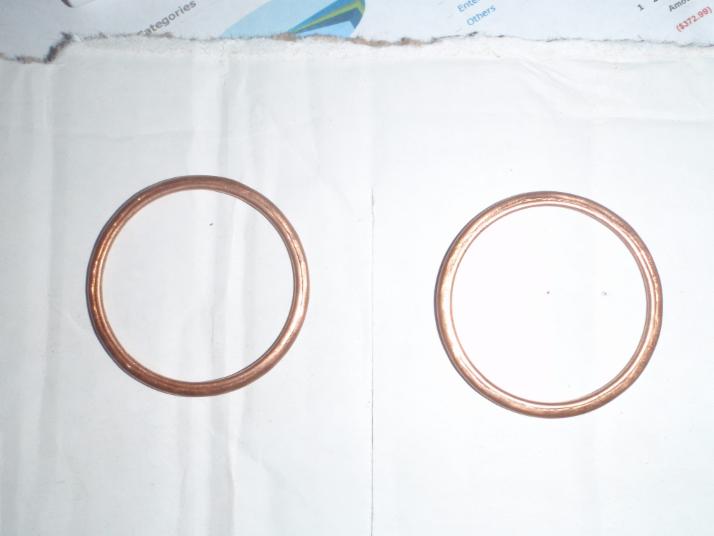

Copper exhaust O Ring gaskets, 27-29582
Price Set of two rings $15.00
Two sets sold together, 4 rings, $24.00
Engine Kick out for Mod Engines using a Stick Tower
This is a part that we manufacture for use on our racing engines. It enables a solid adjustment for engine kick out by turning the screw either in or out. This provides a solid positin holder with infinite settings. It can be used with or without the normal tilt pin for positions settings between the tilt pin position.
Price for the adjustable kick out $49.95
Available plate used to stiffen the transom or for high angles $ 9.95
Shipping for bracket $ 7.00
Shipping for bracket and plate $12.50
New Steel Sick Tower for use on Mercury Mod Engines
Use either Mercury D foot or Yamato foot
Parker style Mod tower that can be used with either the early power head bolt pattern or the later style. The top and bottom plates have been machined to be parallel to each other, the aft stick can be used for the coolant water. You supply the cavitation plate and the top spacer and the saddle/transom bracket. The swivel pin is the same diameter as used on the Mercury saddle. Your saddle will have to be trimmed to fit there is 6.25 inches between the swivel pin holes and 7.75 inches between the top and bottom plates mounting surfaces. The built in Mercury style steering co pilot can be used to adjust the tension in the steering cables. The tower is not painted allowing you to finish it how ever you like matching your engine or boat. The weight is 9.5 pounds.
Price $375.00 plus shipping

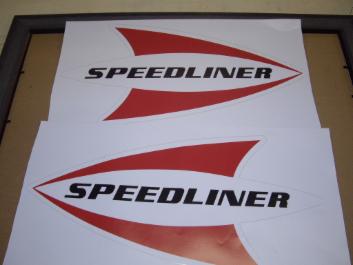

1962-1967 Speedliner Decals $ 20.00 set plus shipping

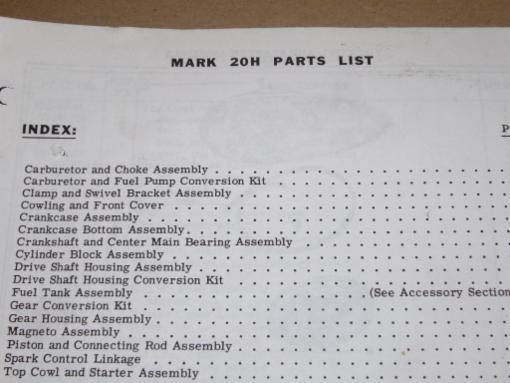

90-26116 Mark 20H Parts list $ 2.00 plus Shipping

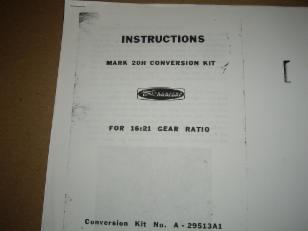

Instructions, Mark 20H Conversion, 16:21 Gears & Tiliston Carb.
Price $ 2.00 Plus Shipping
Harry Brinkman's manual on how to modify your Mercury for more horsepower is being published by Aeroliner Race Boats, LLC. This is Manual Number 3, first published in 1994 by Harry Brinkman. This treatise is the best of the best knowledge on this subject. We have added a new chapter on modifing the 44 CI engine and retyped most of the text, added chapter headings, page numbers and an index making the manual easier to use. We have also updated the vendors listed in the manual.
Price $ 40.00 plus $7.00 shipping
Mercury Mark 20H, Description of an Unmolested Engine
This article shows and describes the exterior & powerhead of an unmolested Mark 20H Included are many photos with a running explanation as the cowlings were removed for the first time. Part numbers, a full parts list, covers of the owners manual, owners envelope and a 1954 prices list are included. A history of the 1959 conversion kits with a photo of the prototype exhaust, together with an explanation of the developement by Charlie Strang, an interview with Jack Leek and the patent issued are part of the article. In all there are 76 pages with over 80 color photos.
Price Sold Out $35.00 plus $ 7.00 shipping
